SS304 DN50 Tower Random Packing For Chemical Industry Metal Pall Ring
Product Introduction
1. The pall ring is an improvement of the raschig ring.
2. The difference for the Pall Ring is the addition of two rows of punched and formed fingers.
3. This adjustment provides a significant performance increase: the capacity and efficiency is improved and the pressure drop is reduced.
Technical Data of metal pall rings:
| Nominal size | 16 mm pall ring |
| Thickness | 0,3 mm |
| Weight | 340 kg/m³ |
| Surface area | 360 m²/m³ |
| Void fraction | 95 % |
| Material | stainless steel |
| Available materials | carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request |
| Nominal size | 25 mm pall ring |
| Thickness | 0,5 mm |
| Weight | 393 kg/m³ |
| Surface area | 215 m²/m³ |
| Void fraction | 95 % |
| Material | stainless steel |
| Available materials | carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request |
| Nominal size | 38 mm pall ring |
| Thickness | 0,5 mm |
| Weight | 285 kg/m³ |
| Surface area | 145 m²/m³ |
| Void fraction | 96 % |
| Material | stainless steel |
| Available materials | carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request |
| Nominal size | 50 mm pall ring |
| Thickness | 0,5 mm |
| Weight | 207 kg/m³ |
| Surface area | 112 m²/m³ |
| Void fraction | 97 % |
| Material | stainless steel |
| Available materials | carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request |
| Nominal size | 76 mm pall ring |
| Thickness | 0,7 mm |
| Weight | 109 kg/m³ |
| Surface area | 78 m²/m³ |
| Void fraction | 98 % |
| Material | stainless steel |
| Available materials | carbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request |
Material
Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.
Applications of metal pall rings
| 1 | Degassing |
| 2 | Gas washing |
| 3 | Steam stripping |
| 4 | Air pollution control scrubbers |
| 5 | H2S, NH3 & SO2 absorption and stripping |
Advantages
1.Good liquid gas distribution
2.Higher mass transfer efficiency versatility
3.High resistance to fouling
4.Easily Wettable
FAQ
What's the payment terms?
30% TT in advance
Our Service
1.OEM Service: All details can be designed or changed according to buyer's requirements. The material and size can be customized.
2.Competitive Price: Factory price
3.Team Support: Professional sales and technology team
4.Good Quality: 12 years production experiences in tower packing and have strict quality control system.
5.Sample is free
Product Tags:
|
|

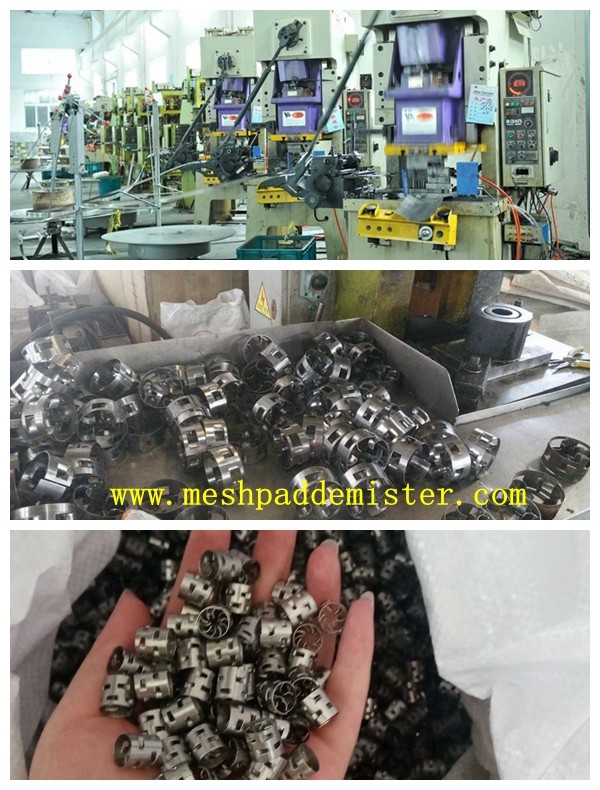

Dn50 Tower Random Ss304 Packing Pall Ring For Chemical Industry Images
|
